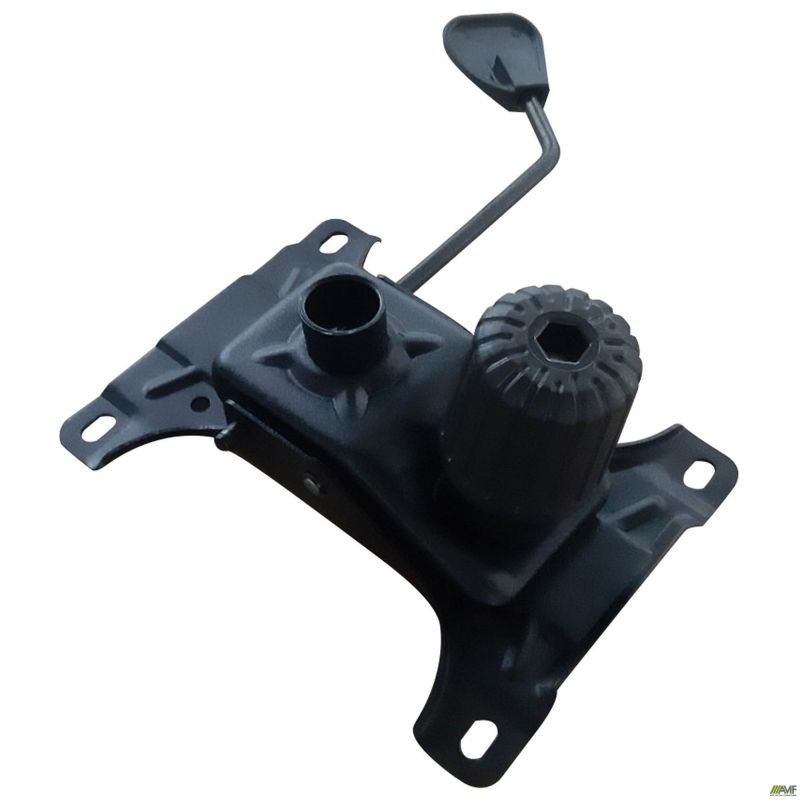

The TILT black rocking mechanism is a chair component that lets the seat rock freely forward and back with a lock in one working position. It is most often installed on executive chairs and less often on operator chairs.
Rocking tension is adjustable, so the range of motion can be tuned to the user, and height adjustment is also available. The mechanism is rated for a maximum load of 120 kg.
Features
- Steel frame, black color
- Forward-back rocking with a single-position lock
- Adjustable rocking tension
- Height adjustment
- Maximum load rating of 120 kg
- 150x200 mm distance between mounting points
- Shipped without packaging, wrapped in stretch film
Technical Specifications
Main
| Manufacturer code | 217964 |
| Color | Black |
| Maximum load | 120 kg |
Materials and finish
| Frame | Steel |
Construction
| Distance between mounts | 150x200 mm |
| Adjustments | Single-position rocking lock, rocking tension adjustment, height adjustment |
| Intended use | Executive chairs, occasionally operator chairs |
Packaging
| Units per package | No box, stretch-wrapped |
Use in Institutions
The TILT mechanism is mainly used on executive chairs — for school principals, facility heads and healthcare institution managers — and occasionally on operator chairs for administrative staff.
Frequently Asked Questions
Which chairs use the Tilt mechanism?
Most often executive chairs, less often operator chairs.
Can the rocking range be adjusted?
Yes, rocking tension is adjustable, and height adjustment is also available.
What is the maximum load it can handle?
120 kg.
Is it easy to replace if it breaks?
Yes, Tilt is one of the most common mechanisms, so finding a replacement is usually straightforward.
