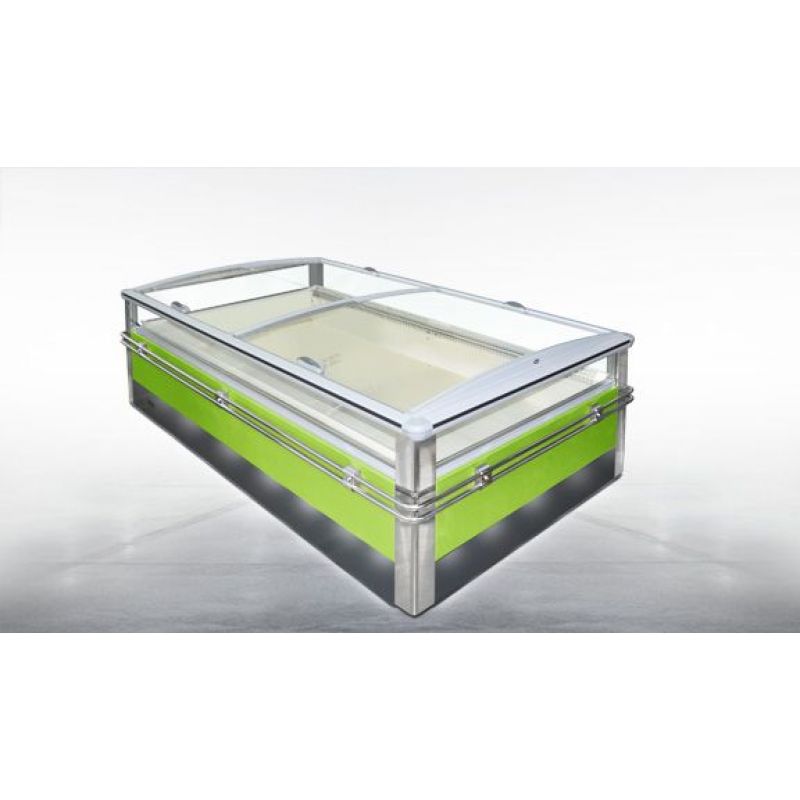

The Tekhnoholod БХН-3,75 «Alaska M» freezer display case is low-temperature refrigerated retail equipment from a Ukrainian manufacturer, designed for long-term storage of frozen goods: semi-finished products, ice cream, fish and other items requiring a stable sub-zero regime. At 3750 mm, it is the longest module in the «Alaska M 150» line, making it suitable for large supermarket sales floors as well as kitchens and shops at educational and healthcare institutions with substantial storage volumes.
The unit belongs to temperature class L1 with an operating temperature of -22…-18°C. Refrigeration capacity is 2062 W, or 1312 W with glass modules fitted. Reinforced insulation is provided by 144 mm side panels, and air speed inside the case does not exceed 0.2 m/s, keeping the microclimate stable. Power is supplied from a three-phase 380V network, with electrical power of 413 W and defrost power of 4800 W.
Features
- The longest module in the «Alaska M 150» line — 3750 mm, for large volumes of frozen goods.
- Temperature class L1, operating temperature -22…-18°C.
- Reinforced insulation: side panel thickness of 144 mm.
- Built for medium and large sales floors, including kitchens and shops at institutions.
- Drainage system and standardized refrigerant pipe connections.
- Ukrainian-made by Tekhnoholod.
Specifications
| Brand | Tekhnoholod (Ukraine) |
| Manufacturer article | БХН-3,75 |
| Product type | Freezer display case (low-temperature) |
| Series | Alaska M 150 |
| Module length | 3750 mm |
| Side panel thickness (both sides) | 144 mm |
| Ambient temperature | ≤ +25°C |
| Humidity | ≤ 60% |
| Air speed | ≤ 0.2 m/s |
| Operating temperature | -22…-18°C |
| Temperature class | L1 |
| Refrigeration capacity (-22…-18°C) | 2062 W |
| Refrigeration capacity (-22…-18°C) with glass modules | 1312 W |
| Refrigerant pipe connection (discharge) | 10 mm |
| Refrigerant pipe connection (suction) | 22 mm |
| Drainage | 40 mm |
| Power supply | 380V ±10%, 50Hz, 3L+N+Pe |
| Electrical power | 413 W |
| Defrost power | 4800 W |
For educational, healthcare and other institutions, cashless payment and a full set of documents for tender purchases are available. Delivery of Tekhnoholod equipment across Ukraine.
