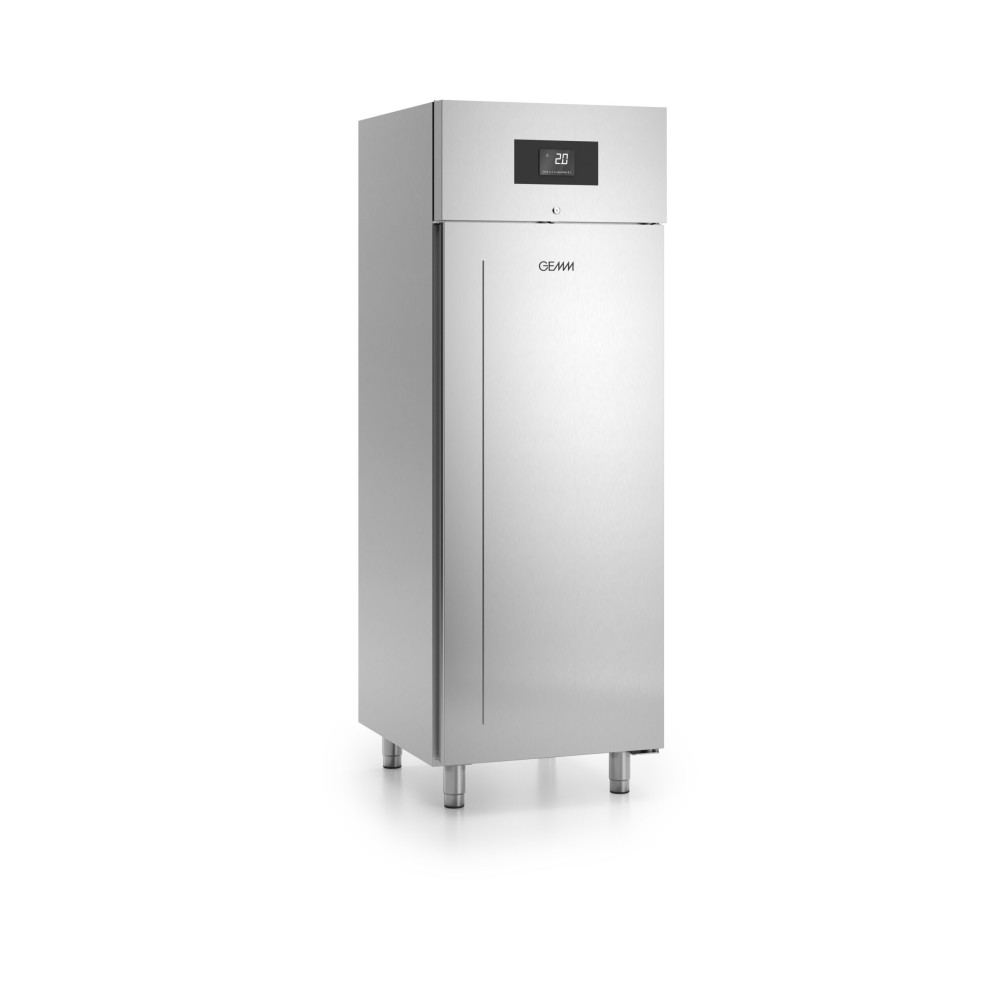

The GEMM EFN01 R290 is a single-door upright refrigerator cabinet from the Italian manufacturer GEMM, designed for storing chilled food in school, kindergarten and hospital kitchens and other institutional catering facilities. The interior is designed to hold runners for GN 2/1 containers, with a built-in cooling unit.
The cabinet maintains a temperature range of -2/+8°C (NORMAL TEMPERATURE version) with a gross capacity of 585 l (404 l net). It offers 19 rack positions for GN 2/1 runners at a 65 mm pitch. The model runs on R290 refrigerant with a 1/3 HP compressor and is prearranged for connection to a remote condensing unit with a valve system on request.
Features
- Upright refrigerator cabinet for GN 2/1 containers.
- Temperature range of -2/+8°C.
- 585 l gross capacity (404 l net), 19 rack positions at a 65 mm pitch.
- Built-in (plug-in) cooling unit with a 1/3 HP compressor.
- Standard lock included, 1 evaporator.
- Energy efficiency class C.
Specifications
| Manufacturer code | EFN01 R290 |
| Dimensions | 72 × 81 × 209 cm |
| Temperature range | -2/+8°C |
| Capacity, l | 585 |
| Doors | 1 |
| Cooling unit location | built-in |
| Version | NORMAL TEMPERATURE |
| Loading capacity | runners for GN 2/1 containers |
| Net capacity, l | 404 |
| Gross capacity, l | 585 |
| External dimensions (W×D×H) | 72 × 81 × 209 cm |
| Insulation thickness | 60 mm |
| Tray pitch | 65 mm |
| Rack positions | 19 |
| Evaporators | 1 |
| Standard lock | yes |
| Standard light | no |
| Condensing unit | plug-in unit |
| Compressor power | 1/3 HP |
| Refrigerant (gas) | R290 |
| Ventilation control | no |
| Humidity control | no |
| Max. absorbed power | 180 W |
| Cooling power | 425 W |
| Input voltage | 1×230V, 50Hz |
| Energy efficiency class | C |
| Energy consumption per 24h | 1.51 kWh |
| Energy consumption per year | 550 kWh |
| Energy efficiency index | 43.21 |
| Climate class | 5 |
| Packaging dimensions (W×D×H) | 87 × 77 × 224 cm |
| Gross volume (packaging), m³ | 1.5 |
| Net weight | 106 kg |
| Gross weight | 116 kg |
The GEMM EFN01 R290 is used to store chilled raw materials, semi-finished products and cooked dishes in kitchens of educational and healthcare institutions that need centralised storage in GN 2/1 containers. The standard lock allows access to the cabinet contents to be restricted.
Being prearranged for a remote condensing unit with a valve system on request gives flexibility when planning the layout of refrigeration equipment in the kitchen. Energy efficiency class C and low absorbed power of 180 W make the cabinet economical for everyday use.
