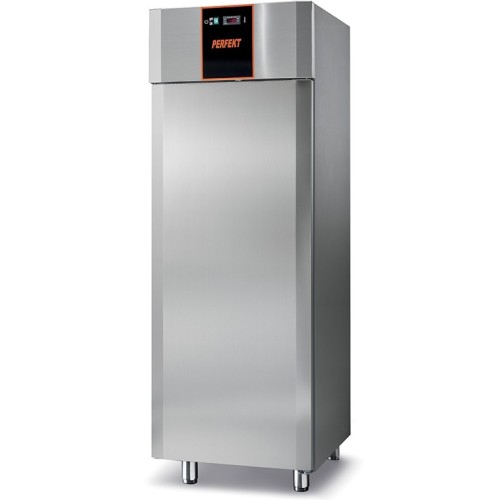

The Tecnodom P-AFD07TN-C-PK refrigerated cabinet from the Series 700 Dom System is an Italian-made solution for above-zero food storage in the kitchens of schools, kindergartens, hospitals and other public-sector facilities. Its -2…+8°C operating range and 454.74 L net volume support daily storage of chilled products, semi-finished goods and ready meals throughout the production day.
The cabinet's interior and exterior surfaces are stainless-steel INOX 18/10, with galvanised steel used for the external base, top and back, and rounded internal corners. The 60 mm insulation layer is high-pressure injected and CFC-free. Refrigeration is monoblock with forced-air circulation, defrosting is automatic with hot gas, and condensate evaporation is automatic. The unit runs on a 230V supply and draws only 280W at 1.5A, corresponding to energy class C. Control is handled from a front electronic panel with two NTC sensors, the refrigerant is R290 (GWP 3), and the noise level is 42 dB(A).
Features
- Technology, design and manufacturing entirely in Italy.
- Stainless-steel interior and exterior surfaces; galvanised steel used for the external base, top and back.
- Rounded internal cabinet corners.
- High-pressure injected polyurethane insulation, CFC-free.
- Door can be reversed to the opposite side using a hinge-reversal kit.
- Front electronic control panel with two NTC temperature sensors.
- Automatic defrost cycle and automatic condensate evaporation.
- Height-adjustable stainless-steel feet, 110–180 mm.
- Prepared for optional LED lighting and lock installation.
- Simple installation, ready to use right after connection.
- Includes 3 hook sets for mounting grids.
- Includes 3 plasticised GN 2/1 grids.
- Fan-stop function.
Specifications
| Brand | Tecnodom (Italy) |
| Manufacturer code | P-AFD07TN-C-PK |
| Product type | Refrigerated cabinet |
| Operating temperature | -2 / +8 °C |
| Annual energy consumption (AEC) | 561.37 kWh |
| Net volume | 454.74 L |
| Climate class (safety standard IEC-EN 60335-2-89) | 5 |
| Climate class (test conditions) | 4 (30°C, 55% RH) |
| Refrigerant | R290 |
| GWP (Global Warming Potential) | 3 |
| Noise level LwA | 42 dB(A) |
| Refrigeration type | monoblock, forced-air |
| Defrosting | automatic, hot gas |
| Condensate evaporation | automatic |
| Voltage | 230 V, 1N |
| Frequency | 50 Hz |
| Power consumption | 280 W |
| Supply current | 1.5 A |
| Material | stainless steel INOX 18/10 |
| Insulation thickness | 60 mm |
| Feet height | 110 to 180 mm |
| Number of grids | 3 |
| Grid dimensions | 530×650 mm |
| Dimensions with packaging (LxWxH) | 760×840×2090 mm |
| Dimensions without packaging (LxWxH) | 710×809×2034/2104 mm |
| Gross weight | 105 kg |
| Net weight | 96 kg |
The cabinet is built for daily use in kitchens of educational and healthcare institutions; technical documentation on the equipment can be provided for public procurement procedures.
