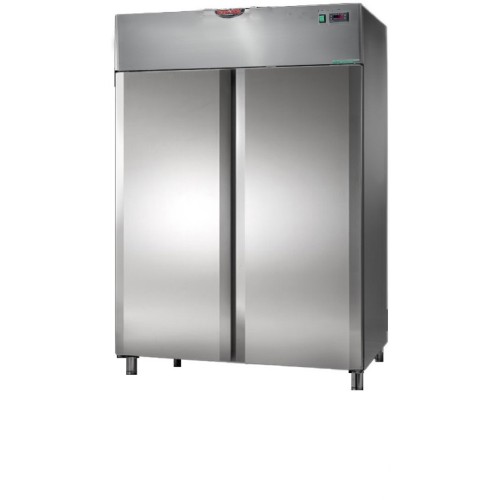

The Tecnodom P-AFD14TN-B-PK refrigerated cabinet from the Series 1400 Dom System is a large-capacity model from the Italian manufacturer Tecnodom, designed for storing chilled products in the kitchens of schools, kindergartens, hospitals and other public-sector institutions. A net volume of 909.5 L and an operating range of -2…+8°C let facilities serving large numbers of people store sizeable volumes of chilled semi-finished goods and ready meals at once.
The cabinet's interior and exterior surfaces are stainless-steel INOX 18/10, with galvanised steel used for the external base, top and back, and rounded internal corners. The 60 mm insulation layer is high-pressure injected and CFC-free. Refrigeration is monoblock with forced-air circulation, defrosting is automatic with hot gas, and condensate evaporation is automatic. Power supply is 230V, drawing 450W at 3.5A, which corresponds to energy class B. Control is handled from a front electronic panel with two NTC sensors, the refrigerant is R290 (GWP 3), and the noise level is 42 dB(A).
Features
- Technology, design and manufacturing entirely in Italy.
- Stainless-steel interior and exterior surfaces; galvanised steel used for the external base, top and back.
- Rounded internal cabinet corners.
- High-pressure injected polyurethane insulation, CFC-free.
- Door can be reversed to the opposite side using a hinge-reversal kit.
- Front electronic control panel with two NTC temperature sensors.
- Automatic defrost cycle and automatic condensate evaporation.
- Height-adjustable stainless-steel feet, 110–180 mm.
- Prepared for optional LED lighting and lock installation.
- Simple installation, ready to use right after connection.
- Includes 6 hook sets for mounting grids.
- Includes 6 plasticised GN 2/1 grids.
- Fan-stop function.
Specifications
| Brand | Tecnodom (Italy) |
| Manufacturer code | P-AFD14TN-B-PK |
| Product type | Refrigerated cabinet |
| Operating temperature | -2 / +8 °C |
| Annual energy consumption (AEC) | 689.85 kWh |
| Net volume | 909.5 L |
| Climate class (safety standard IEC-EN 60335-2-89) | 5 |
| Climate class (test conditions) | 4 (30°C, 55% RH) |
| Refrigerant | R290 |
| GWP (Global Warming Potential) | 3 |
| Noise level LwA | 42 dB(A) |
| Refrigeration type | monoblock, forced-air |
| Defrosting | automatic, hot gas |
| Condensate evaporation | automatic |
| Voltage | 230 V, 1N |
| Frequency | 50 Hz |
| Power consumption | 450 W |
| Supply current | 3.5 A |
| Material | stainless steel INOX 18/10 |
| Insulation thickness | 60 mm |
| Feet height | 110 to 180 mm |
| Number of grids | 6 |
| Grid dimensions | 530×650 mm |
| Dimensions with packaging (LxWxH) | 1450×840×2090 mm |
| Dimensions without packaging (LxWxH) | 1420×790×2030/2100 mm |
| Gross weight | 162 kg |
| Net weight | 147 kg |
The model is suited to kitchens in educational and healthcare institutions with large numbers of people to feed; technical documentation on the equipment is provided for public procurement needs.
