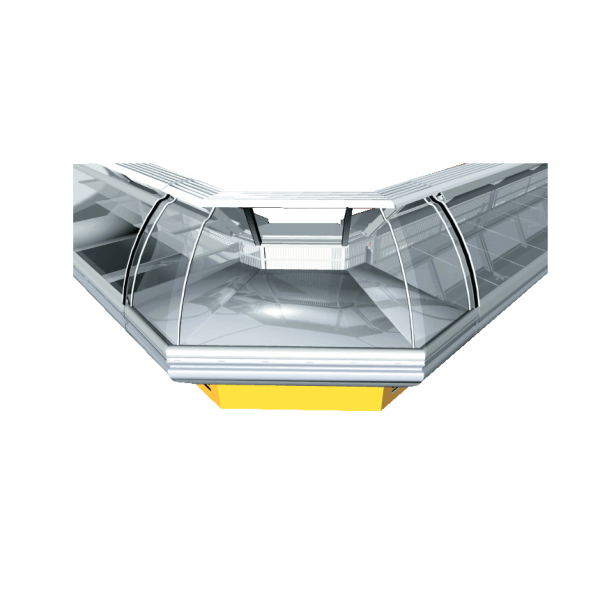

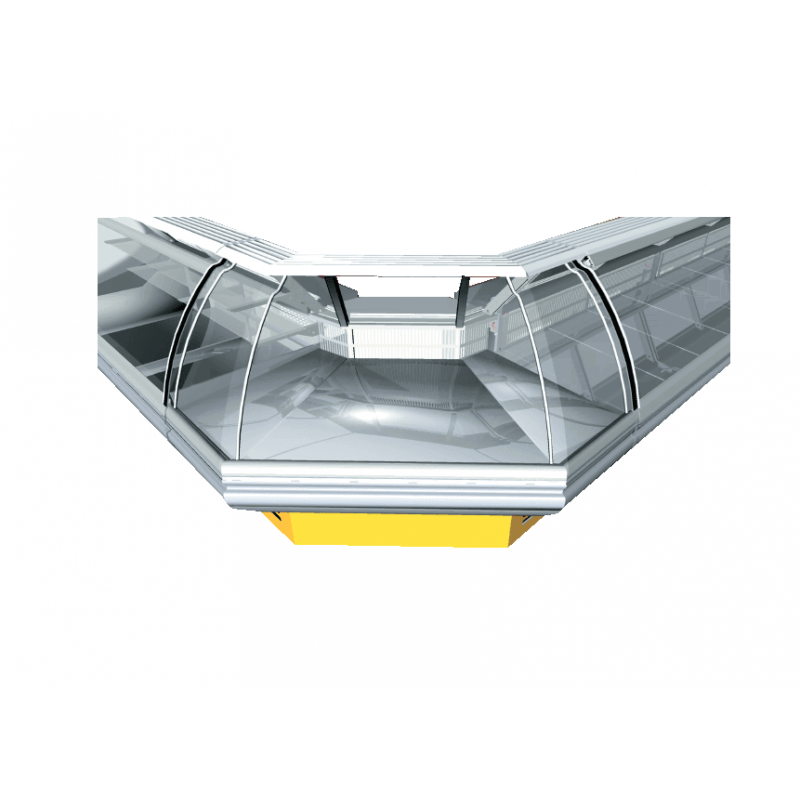

The ROSS Sorrento УН-1,1 external corner display case is a connecting element of the Sorrento refrigerated line made by ROSS (Kharkiv, Ukraine), designed to join straight sections at an angle from the outside of the turn. These corner modules let you extend a counter into an L-shaped layout — going around a column or a corner of the room, or setting up two serving directions in a single line.
The external version of the УН-1,1 uses dynamic cooling with a fan-driven forced air circulation in the working volume, ensuring even cooling of the product across the whole 1.1 m² display area. Working temperature in the useful volume is +2…+8°C, maximum power consumption is 300 W, and daily consumption at +22°C ambient is 8.0 kWh. The module is 1366 mm wide, 1250 mm high, weighs 220 kg and can hold up to 55 kg of evenly loaded product. The case has an electronic control panel with automatic evaporator defrost.
Features
- Fan-driven forced air circulation for even product cooling.
- Display trays and counter top made of stainless steel.
- Curved tempered panoramic glass on gas lifts.
- Energy-saving LED lighting of the interior volume.
- Body filled with high-pressure polyurethane foam.
- Body panels made of galvanised steel with polymer coating, no welding.
- Electronic control panel with automatic evaporator defrost.
- Additional temperature indicator in the working volume.
- Uninterrupted operation at ambient temperatures up to +25°C.
- Choice of base colour.
- Used to join Sorrento lines or as a stand-alone case with standard side panels.
Specifications
| Brand | ROSS (Ukraine) |
| Manufacturer article | УН-1,1 |
| Product type | External corner refrigerated display case |
| Width, mm | 1366 |
| Height, mm | 1250 |
| Ambient temperature, °C | +12…+25 |
| Temperature in useful volume, °C | +2…+8 |
| Supply voltage, V | 220±22 |
| Maximum power consumption, W | 300 |
| Daily power consumption (+22°C), kWh | 8.0 |
| Display area, m² | 1.1 |
| Evenly loaded product weight, kg | 55 |
| Cooling type | Dynamic |
| Weight, kg | 220 |
For institutions and organisations — payment by bank transfer and a full set of documents for Prozorro tender purchases. Delivery of the display case across Ukraine.
