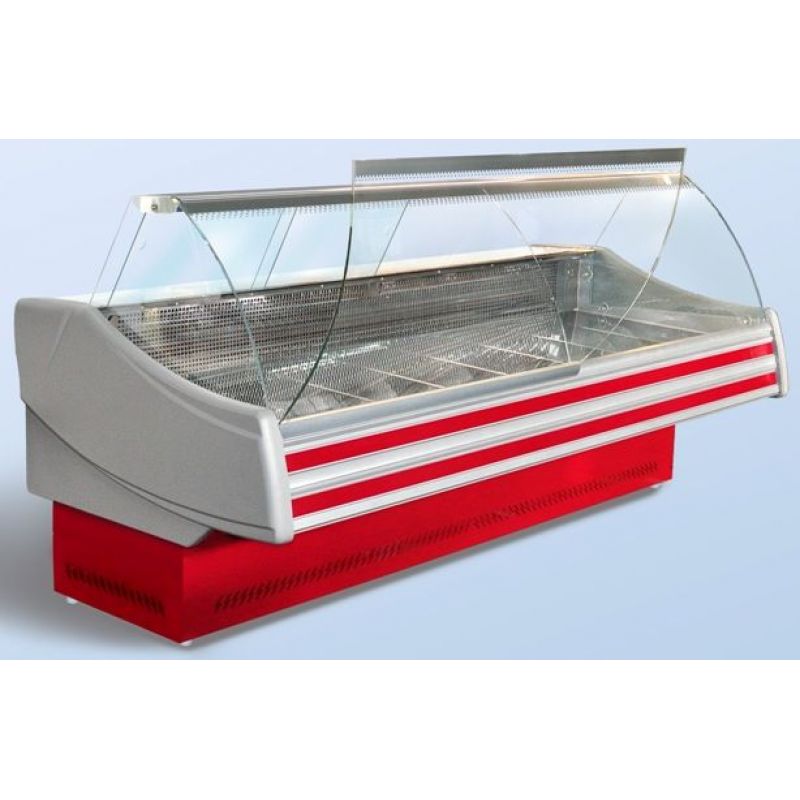

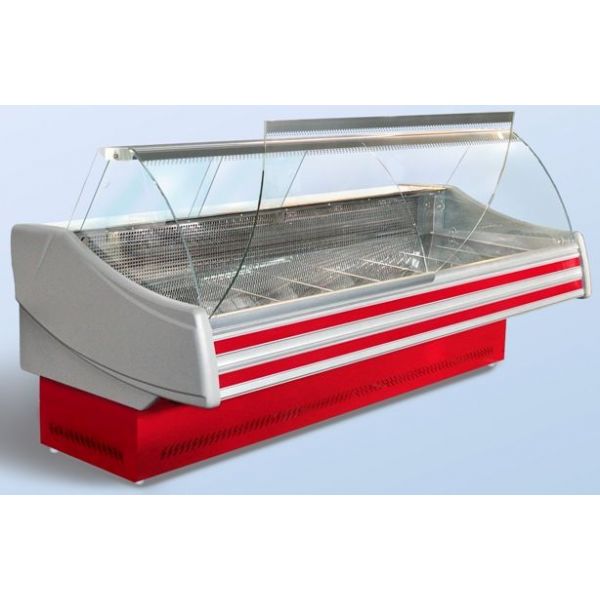

The Tehnoholod ПВХСн-«Соната»-1,3 universal refrigerated display case is a compact solution for displaying ready meals, drinks and cold snacks in smaller canteens and buffets of schools, kindergartens and healthcare facilities, where saving floor space without losing display area matters. The case length is 1250 mm, with a display area of 0.97 m².
The case operates in 0…+2°C and +2…+4°C modes, temperature class M1/M2. Side panels are 120 mm thick, and the unit runs on a 220 V ±10 % 50 Hz (L+N+Pe) power supply. It is rated for ambient temperature up to +25°C and humidity up to 60 %. Electric power is 390 W in the 0…+2°C mode and 400 W in the +2…+4°C mode, with an optional 300 W defrost heater. Some model parameters require additional confirmation with the Tehnoholod manufacturer.
Features
- Compact model — 1250 mm case length.
- Made in Ukraine by Tehnoholod — suitable for Prozorro tenders.
- Two operating modes 0…+2°C and +2…+4°C, class M1/M2.
- Display area 0.97 m².
- Side panel thickness 120 mm.
- Rated for ambient temperature up to +25°C and humidity up to 60 %.
- Optional 300 W defrost heater.
- Power supply 220 V ±10 %, 50 Hz, L+N+Pe.
- Daily power consumption 6.7-7.6 kWh depending on mode.
- Some parameters are confirmed with the manufacturer individually.
Specifications
| Brand | Tehnoholod (Ukraine) |
| Manufacturer article | ПВХСн-«Соната»-1,3 |
| Product type | Universal refrigerated display case (Sonata line) |
| Case length, mm | 1250 |
| Side panel thickness, mm | 120 |
| Display area, m² | 0.97 |
| Ambient temperature, °C | ≤ +25 |
| Humidity, % | ≤ 60 |
| Operating temperature, °C | 0…+2 / +2…+4 |
| Temperature class | M1/M2 |
| Power supply | 220 V ±10%, 50 Hz, L+N+Pe |
| Electric power (0…+2°C), W | 390 |
| Electric power (+2…+4°C), W | 400 |
| Defrost power (optional), W | 300 |
| Daily power consumption (0…+2°C), kWh | 7.6 |
| Daily power consumption (+2…+4°C), kWh | 6.7 |
For schools, kindergartens, hospitals and other publicly funded institutions, cashless payment and a full set of tender documentation, including for Prozorro, are available. The Tehnoholod ПВХСн-«Соната»-1,3 display case is delivered across Ukraine.
