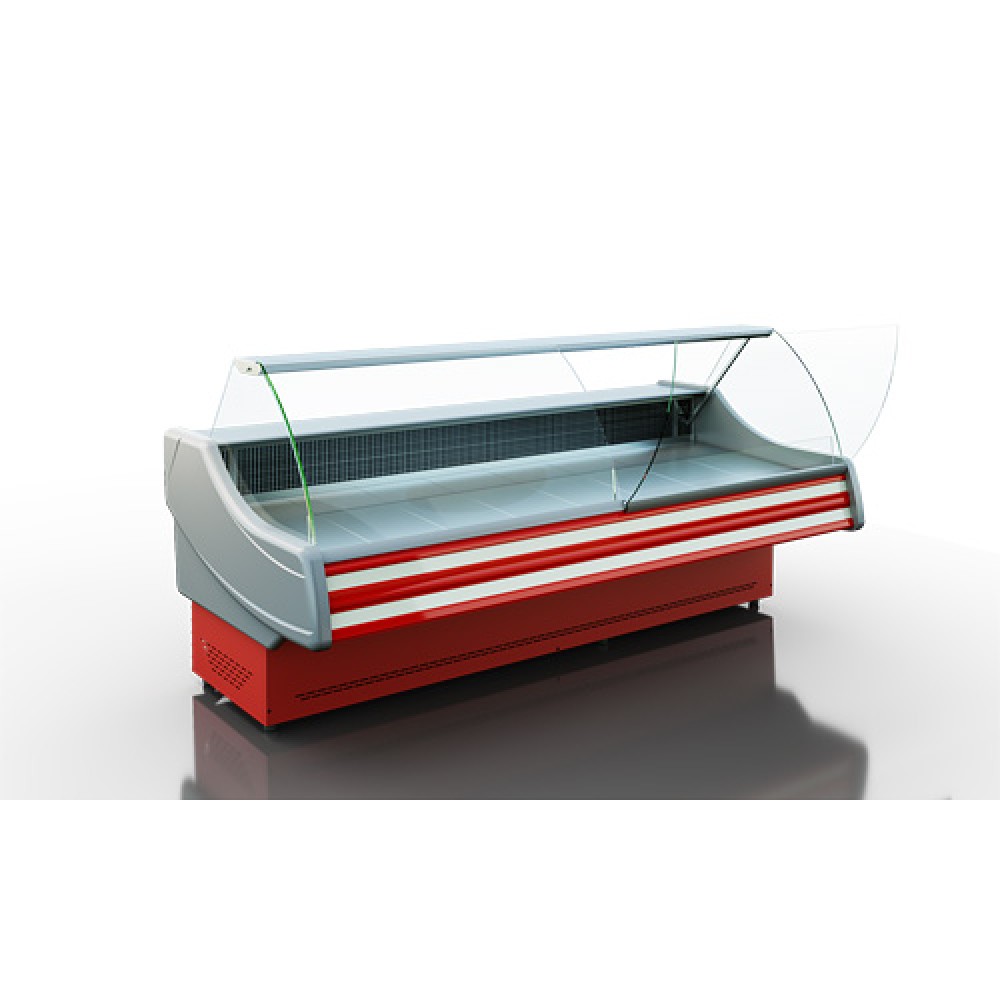

The Tehnoholod ПВХСн-«Соната»-1,6 universal refrigerated display case is designed for facilities with higher visitor flow: the case length is 1500 mm, with a display area of 1.17 m². The model suits displaying ready meals, drinks, desserts and cold snacks in canteens and buffets of schools, kindergartens and hospitals.
Operating modes are 0…+2°C and +2…+4°C, temperature class M1/M2. Side panels are 120 mm thick, and the unit runs on a 220 V ±10 % 50 Hz (L+N+Pe) power supply. The case is rated for ambient temperature up to +25°C and humidity up to 60 %. Electric power is 525 W in the 0…+2°C mode and 540 W in the +2…+4°C mode, with an optional 400 W defrost heater.
Features
- Case length 1500 mm, display area 1.17 m².
- Made in Ukraine by Tehnoholod — suitable for Prozorro tenders.
- Two operating modes 0…+2°C and +2…+4°C, class M1/M2.
- Side panel thickness 120 mm.
- Rated for ambient temperature up to +25°C and humidity up to 60 %.
- Optional 400 W defrost heater.
- Power supply 220 V ±10 %, 50 Hz, L+N+Pe.
- Daily power consumption 8.6-9.2 kWh depending on mode.
- Part of the Sonata (static) product line.
Specifications
| Brand | Tehnoholod (Ukraine) |
| Manufacturer article | ПВХСн-«Соната»-1,6 |
| Product type | Universal refrigerated display case (Sonata line) |
| Case length, mm | 1500 |
| Side panel thickness, mm | 120 |
| Display area, m² | 1.17 |
| Ambient temperature, °C | ≤ +25 |
| Humidity, % | ≤ 60 |
| Operating temperature, °C | 0…+2 / +2…+4 |
| Temperature class | M1/M2 |
| Power supply | 220 V ±10%, 50 Hz, L+N+Pe |
| Electric power (0…+2°C), W | 525 |
| Electric power (+2…+4°C), W | 540 |
| Defrost power (optional), W | 400 |
| Daily power consumption (0…+2°C), kWh | 9.2 |
| Daily power consumption (+2…+4°C), kWh | 8.6 |
For schools, kindergartens, hospitals and other publicly funded institutions, cashless payment and a full set of tender documentation, including for Prozorro, are available. The Tehnoholod ПВХСн-«Соната»-1,6 display case is delivered across Ukraine.
