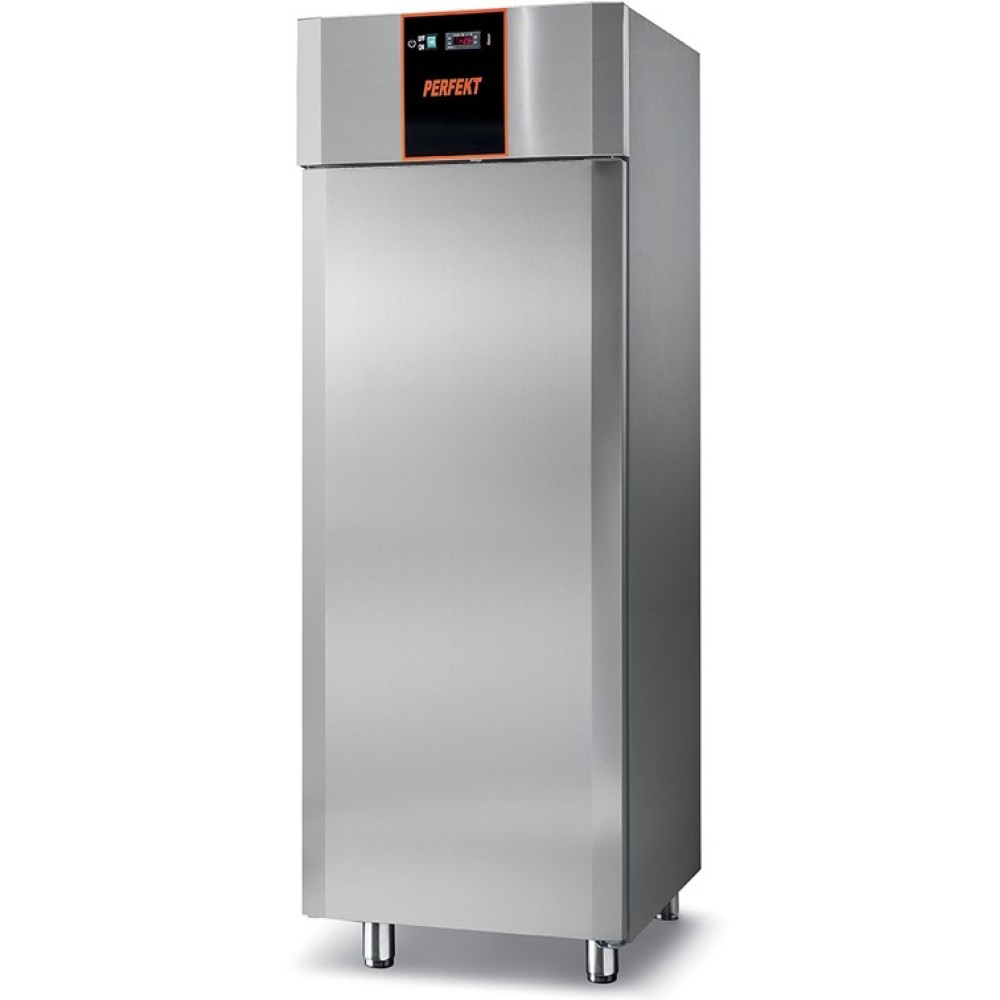

The Tecnodom P-AFD07BT-D-PK is a freezer cabinet from the Series 700 Dom System range, designed and made in Italy for storing frozen food in the kitchens of schools, kindergartens, hospitals and other public-sector facilities. An operating range of -18…-22°C and a net volume of 454.74 L make it suitable for storing sizeable volumes of frozen semi-finished and ready-made products.
The cabinet has stainless-steel INOX 18/10 interior and exterior surfaces, while the external base, top and back are galvanised steel, with rounded internal corners. The 60 mm insulation is high-pressure injected and CFC-free. Refrigeration is monoblock with forced-air circulation, defrosting is automatic using hot gas, and condensate evaporation is automatic. The unit runs on a 230V supply and is controlled from a front electronic panel with two NTC sensors. Energy class is D, the refrigerant is R290 (GWP 3), and the noise level is 42 dB(A).
Features
- Technology, design and manufacturing entirely in Italy.
- Stainless-steel interior and exterior surfaces; galvanised steel used for the external base, top and back.
- Rounded internal cabinet corners.
- High-pressure injected polyurethane insulation, CFC-free.
- Door can be reversed to the opposite side using a hinge-reversal kit.
- Front electronic control panel with two NTC temperature sensors.
- Automatic defrost cycle and automatic condensate evaporation.
- Height-adjustable stainless-steel feet, 110–180 mm.
- Prepared for optional LED lighting and lock installation.
- Simple installation, ready to use right after connection.
- Includes 3 hook sets for mounting grids.
- Includes 3 plasticised GN 2/1 grids.
- Fan-stop function.
- Reinforced door-edge protection against damage.
Specifications
| Brand | Tecnodom (Italy) |
| Manufacturer code | P-AFD07BT-D-PK |
| Product type | Freezer cabinet |
| Operating temperature | -18 / -22 °C |
| Annual energy consumption (AEC) | 2230.15 kWh |
| Net volume | 454.74 L |
| Climate class (safety standard IEC-EN 60335-2-89) | 5 |
| Climate class (test conditions) | 4 (30°C, 55% RH) |
| Refrigerant | R290 |
| GWP (Global Warming Potential) | 3 |
| Noise level LwA | 42 dB(A) |
| Refrigeration type | monoblock, forced-air |
| Defrosting | automatic, hot gas |
| Condensate evaporation | automatic |
| Voltage | 230 V, 1N |
| Frequency | 50 Hz |
| Power consumption | 700 W |
| Supply current | 4 A |
| Material | stainless steel INOX 18/10 |
| Insulation thickness | 60 mm |
| Feet height | 110 to 180 mm |
| Number of grids | 3 |
| Grid dimensions | 530×650 mm |
| Dimensions with packaging (LxWxH) | 760×840×2090 mm |
| Dimensions without packaging (LxWxH) | 710×809×2034/2104 mm |
| Gross weight | 109 kg |
| Net weight | 99 kg |
The unit is suitable for equipping kitchens in educational and healthcare facilities; technical documentation can be provided for public procurement procedures where required.
