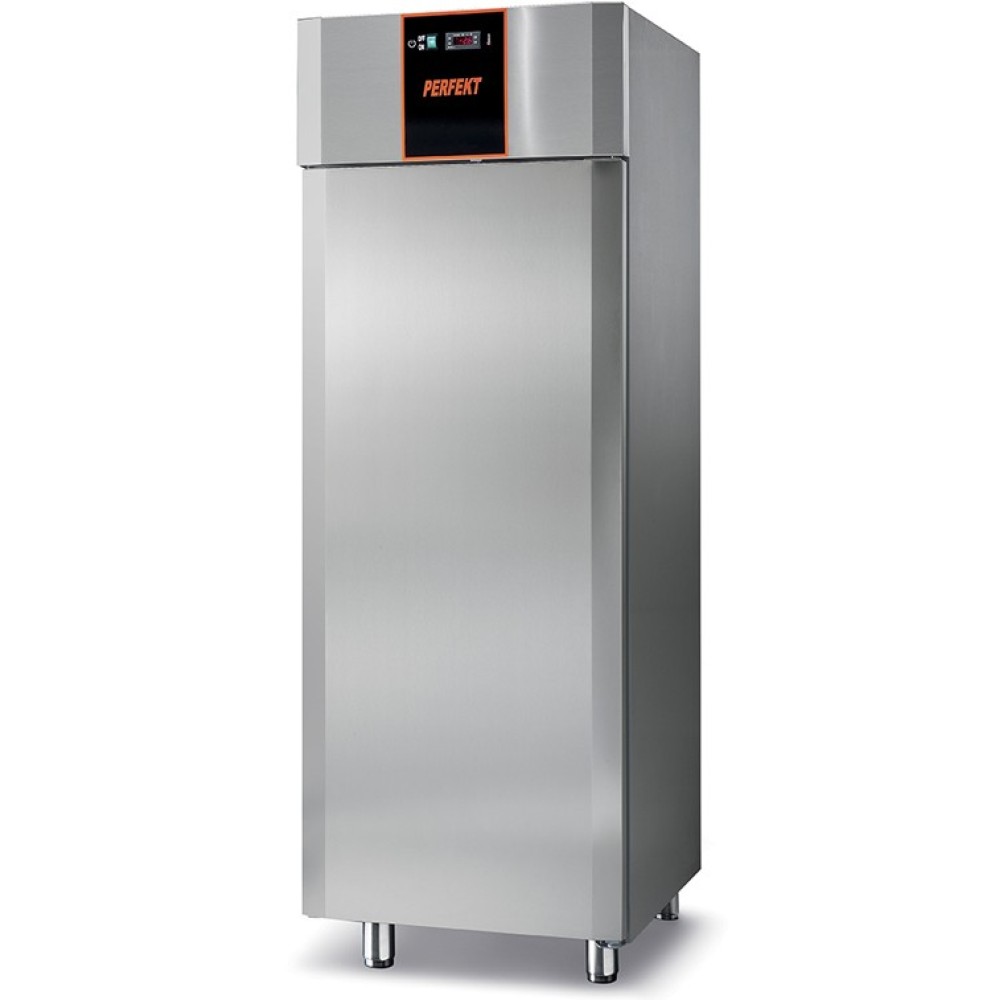

The Tecnodom P-AFD07BT-D-PK+LUX1+SER07+RUOAF is a low-temperature cabinet from the Series 700 Dom System range, built in Italy for institutional kitchens — schools, kindergartens, hospitals and similar public-sector facilities — that need dependable frozen-food storage in the -18…-22°C range. Net internal capacity is 454.74 L, enough for planned storage of sizeable batches of frozen semi-finished goods and ready meals.
The cabinet is built from stainless-steel INOX 18/10 on the interior and exterior, with galvanised steel used for the external base, top and back; internal corners are rounded for easier cleaning. The 60 mm insulation layer is high-pressure injected and CFC-free. The refrigeration unit is monoblock with forced-air circulation; defrosting runs automatically with hot gas, and condensate evaporation is also automatic. Power supply is 230V, with temperature control handled from a front electronic panel with two NTC sensors; energy class is D, the refrigerant is R290 with a GWP of 3, and noise stays at or below 42 dB(A).
Features
- Design, engineering and manufacturing entirely in Italy.
- Stainless steel inside and outside the cabinet, galvanised steel on the external base, top and back.
- Rounded internal corners for easier cleaning.
- High-pressure injected insulation, CFC-free.
- Door can be re-hung on the opposite side using a separate kit.
- Front electronic panel with two NTC sensors for temperature control.
- Automatic defrosting and automatic condensate evaporation.
- Height-adjustable stainless-steel feet (110–180 mm).
- Prepared for optional LED lighting and a lock, if needed.
- Ready to operate right after connection, without complex installation.
- 3 hook sets for grids included in the delivery set.
- 3 plasticised GN 2/1 grids.
- Fan-stop function.
- Reinforced protection of the door edges against mechanical damage.
Specifications
| Brand | Tecnodom (Italy) |
| Manufacturer code | P-AFD07BT-D-PK+LUX1+SER07+RUOAF |
| Product type | Freezer cabinet |
| Operating temperature | -18 / -22 °C |
| Annual energy consumption (AEC) | 2230.15 kWh |
| Net volume | 454.74 L |
| Climate class (safety standard IEC-EN 60335-2-89) | 5 |
| Climate class (test conditions) | 4 (30°C, 55% RH) |
| Refrigerant | R290 |
| GWP (Global Warming Potential) | 3 |
| Noise level LwA | 42 dB(A) |
| Refrigeration type | monoblock, forced-air |
| Defrosting | automatic, hot gas |
| Condensate evaporation | automatic |
| Voltage | 230 V, 1N |
| Frequency | 50 Hz |
| Power consumption | 700 W |
| Supply current | 4 A |
| Material | stainless steel INOX 18/10 |
| Insulation thickness | 60 mm |
| Feet height | 110 to 180 mm |
| Number of grids | 3 |
| Grid dimensions | 530×650 mm |
| Dimensions with packaging (LxWxH) | 760×840×2090 mm |
| Dimensions without packaging (LxWxH) | 710×809×2034/2104 mm |
| Gross weight | 109 kg |
| Net weight | 99 kg |
The equipment is intended for kitchens in educational and healthcare facilities; technical documentation for the model is provided for public procurement needs.
