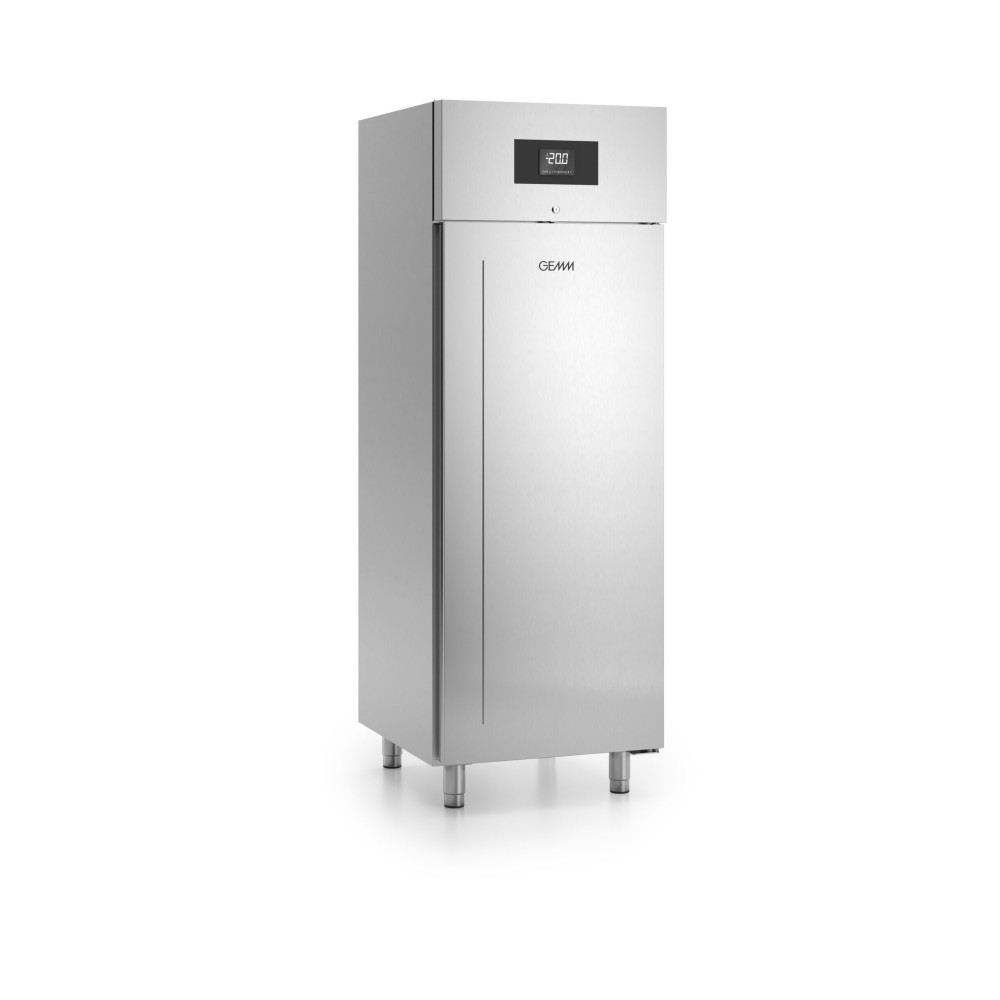

The GEMM EFB01 R290 is a single-door upright freezer cabinet from the Italian manufacturer GEMM, designed for storing frozen food in school, kindergarten and hospital kitchens and other institutional catering facilities. The interior is designed to hold runners for GN 2/1 containers, with a built-in cooling unit.
The cabinet maintains a low-temperature range of -18/-21°C (LOW TEMPERATURE version) with a gross capacity of 585 l (404 l net). It offers 19 rack positions for GN 2/1 runners at a 65 mm pitch. The model runs on R290 refrigerant with a 1/2 HP compressor and is prearranged for connection to a remote condensing unit with a valve system on request.
Features
- Upright freezer cabinet for GN 2/1 containers.
- Temperature range of -18/-21°C.
- 585 l gross capacity (404 l net), 19 rack positions at a 65 mm pitch.
- Built-in (plug-in) cooling unit with a 1/2 HP compressor.
- Standard lock included, 1 evaporator.
- Prearranged for a remote condensing unit with valve system on request.
Specifications
| Manufacturer code | EFB01 R290 |
| Dimensions | 72 × 81 × 209 cm |
| Temperature range | -18/-21°C |
| Capacity, l | 585 |
| Doors | 1 |
| Cooling unit location | built-in |
| Loading capacity | runners for GN 2/1 containers |
| Version | LOW TEMPERATURE |
| Net capacity, l | 404 |
| Gross capacity, l | 585 |
| External dimensions (W×D×H) | 72 × 81 × 209 cm |
| Insulation thickness | 60 mm |
| Tray pitch | 65 mm |
| Rack positions | 19 |
| Evaporators | 1 |
| Standard lock | yes |
| Standard light | no |
| Condensing unit | plug-in unit |
| Compressor power | 1/2 HP |
| Refrigerant (gas) | R290 |
| Ventilation control | no |
| Humidity control | no |
| Max. absorbed power | 605 W |
| Cooling power | 655 W |
| Input voltage | 1×230V, 50Hz |
| Energy efficiency class | D |
| Energy consumption per 24h | 5.49 kWh |
| Energy consumption per year | 2004 kWh |
| Energy efficiency index | 57.88 |
| Climate class | 5 |
| Packaging dimensions (W×D×H) | 87 × 77 × 224 cm |
| Gross volume (packaging), m³ | 1.5 |
| Net weight | 112 kg |
| Gross weight | 122 kg |
The GEMM EFB01 R290 is used to store frozen raw materials and semi-finished products in kitchens of educational and healthcare institutions that need centralised storage in GN 2/1 containers. The standard lock allows access to the cabinet contents to be restricted.
Being prearranged for a remote condensing unit with a valve system on request gives flexibility when planning the layout of refrigeration equipment in the kitchen, particularly where placing the compressor unit directly next to the cabinet is not practical.
