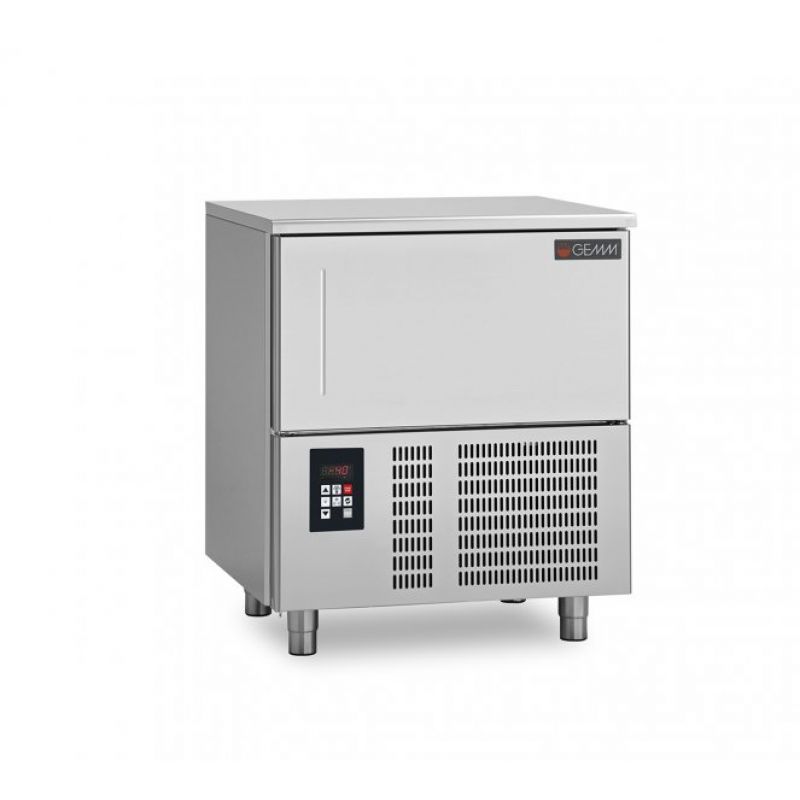

The GEMM BCB05 is a compact blast chiller / shock freezer from the Italian manufacturer GEMM, designed for rapid cooling and freezing of cooked dishes and semi-finished products in school, kindergarten and hospital kitchens and other institutional catering facilities. The unit is designed to hold 5 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves are not provided), with a built-in cooling unit.
The unit chills food from +90°C to +3°C in 90 minutes and freezes from +90°C to -18°C in 240 minutes, allowing food to pass quickly through the temperature zone where bacteria multiply and preserving quality, texture and appearance. Minimum air temperature inside the cabinet is -40°C. The model runs on R290 refrigerant and is offered in the BASIC configuration.
Features
- Rapid chilling of cooked food from +90°C to +3°C in 90 minutes.
- Freezing from +90°C to -18°C in 240 minutes.
- Built-in (plug-in) cooling unit, no remote condensing unit required.
- Loading capacity of 5 GN 1/1 trays or 600×400 mm trays/shelves.
- Ice-cream tray capacity of 6 units, 5 l each.
- R290 refrigerant, climate class 5.
Specifications
| Manufacturer code | BCB05 |
| Dimensions | 80 × 75 × 90 cm |
| Doors | 1 |
| Cooling unit location | built-in |
| Loading capacity | 5 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves not provided) |
| Blast freezing yield | +90/+3°C — 22 kg | +90/-18°C — 15 kg |
| Version | BASIC |
| Capacity, l | 102 |
| Gross capacity, l | 102 |
| Capacity of trays/shelves | 5 GN 1/1 or 5 EN (600×400) |
| External dimensions (W×D×H) | 80 × 75 × 90 cm |
| Insulation thickness | 60 mm |
| Tray pitch | 67 mm |
| Ice-cream trays capacity | 6 pcs (5 l, 360×160×120h mm) |
| Standard lock | no |
| Standard light | no |
| Chilling/freezing yield | +90/+3°C — 22 kg / +90/-18°C — 15 kg |
| Condensing unit | plug-in unit |
| Refrigerant (gas) | R290 |
| Ventilation control | no |
| Humidity control | no |
| Max. absorbed power | 930 W |
| Cooling power | 1039 W |
| Input voltage | 1×230V, 50Hz |
| Climate class | 5 |
| Packaging dimensions (W×D×H) | 87 × 84 × 107 cm |
| Gross volume (packaging), m³ | 0.78 |
| Net weight | 96 kg |
| Gross weight | 106 kg |
The GEMM BCB05 blast chiller is used in kitchens of educational and healthcare institutions to prepare dishes in advance for short-term chilled or frozen storage, helping to spread kitchen workload more evenly throughout the day and reducing the time food spends in the temperature danger zone.
Compact external dimensions of 80 × 75 × 90 cm and a single-phase 230V power supply allow the unit to be installed even in kitchens with limited space, while the BASIC configuration without additional ventilation or humidity control simplifies operation by kitchen staff.
