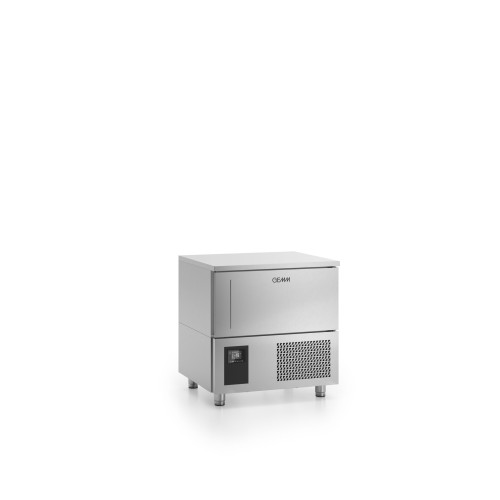

The GEMM BCB05E is a built-in installation blast chiller / shock freezer from the Italian manufacturer GEMM, designed for school, kindergarten and hospital kitchens and other institutional catering facilities. The unit holds 5 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves not provided), with a built-in cooling unit.
The unit chills food from +90°C to +3°C in 90 minutes and freezes from +90°C to -18°C in 240 minutes, allowing food to pass quickly through the temperature zone where bacteria multiply. Minimum air temperature inside the cabinet is -40°C. The model runs on R290 refrigerant and is offered in the BASIC configuration.
Features
- Built-in installation design for integration into a kitchen line.
- Chilling of cooked food from +90°C to +3°C in 90 minutes.
- Freezing from +90°C to -18°C in 240 minutes.
- Built-in (plug-in) cooling unit.
- Loading capacity of 5 GN 1/1 trays or 600×400 mm trays/shelves.
- R290 refrigerant, climate class 5.
Specifications
| Manufacturer code | BCB05E |
| Dimensions | 80 × 70 × 83 cm |
| Doors | 1 |
| Cooling unit location | built-in |
| Loading capacity | 5 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves not provided) |
| Blast freezing yield | +90/+3°C — 18 kg | +90/-18°C — 11 kg |
| Version | BASIC |
| Capacity, l | 90 |
| Gross capacity, l | 90 |
| Capacity of trays/shelves | 5 GN 1/1 or 5 EN (600×400) |
| External dimensions (W×D×H) | 80 × 70 × 83 cm |
| Insulation thickness | 60 mm |
| Tray pitch | 60 mm |
| Ice-cream trays capacity | 6 pcs (5 l, 360×160×120h mm) |
| Standard lock | no |
| Standard light | no |
| Chilling/freezing yield | +90/+3°C — 18 kg / +90/-18°C — 11 kg |
| Condensing unit | plug-in unit |
| Refrigerant (gas) | R290 |
| Ventilation control | no |
| Humidity control | no |
| Max. absorbed power | 764 W |
| Cooling power | 791 W |
| Input voltage | 1×230V, 50Hz |
| Climate class | 5 |
| Packaging dimensions (W×D×H) | 87 × 77 × 103 cm |
| Gross volume (packaging), m³ | 0.69 |
| Net weight | 84 kg |
| Gross weight | 94 kg |
The built-in installation design allows the GEMM BCB05E to be integrated into a kitchen equipment line, keeping the working area compact. The model is used for pre-cooked dishes that need rapid chilling or freezing before short-term storage.
A single-phase 230V power supply and the BASIC configuration without additional ventilation or humidity control simplify connection and day-to-day operation by kitchen staff at an educational or healthcare institution.
