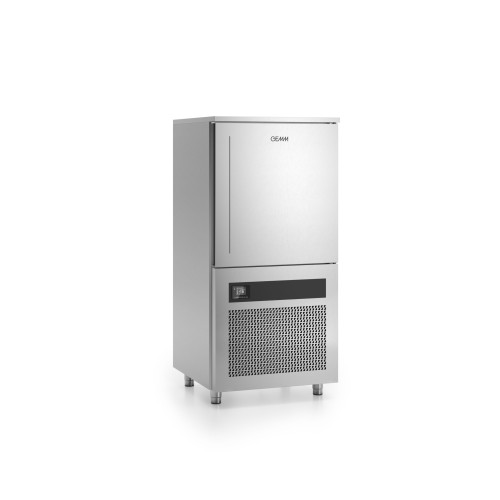

The GEMM BCB10E is a blast chiller / shock freezer from the Italian manufacturer GEMM for 10 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves not provided). The unit is designed for school, kindergarten and hospital kitchens and other institutional catering facilities, with a built-in cooling unit.
The unit chills up to 30 kg of food from +90°C to +3°C in 90 minutes and freezes up to 20 kg from +90°C to -18°C in 240 minutes. Minimum air temperature inside the cabinet is -40°C. The model runs on R290 refrigerant, has a single-phase power supply (1×230V), and is offered in the BASIC configuration.
Features
- Chilling of cooked food from +90°C to +3°C in 90 minutes, up to 30 kg per cycle.
- Freezing from +90°C to -18°C in 240 minutes, up to 20 kg per cycle.
- Built-in (plug-in) cooling unit.
- Loading capacity of 10 GN 1/1 trays or 600×400 mm trays/shelves.
- Ice-cream tray capacity of 15 units, 5 l each.
- R290 refrigerant, climate class 5, single-phase 230V power supply.
Specifications
| Manufacturer code | BCB10E |
| Dimensions | 80 × 82 × 170 cm |
| Doors | 1 |
| Cooling unit location | built-in |
| Version | BASIC |
| Loading capacity | 10 GN 1/1 trays or 600×400 mm trays/shelves (GN 1/1 shelves not provided) |
| Capacity, l | 234 |
| Blast freezing yield | +90/+3°C — 30 kg | +90/-18°C — 20 kg |
| Gross capacity, l | 234 |
| Capacity of trays/shelves | 10 GN 1/1 or 10 EN (600×400) |
| External dimensions (W×D×H) | 80 × 82 × 170 cm |
| Insulation thickness | 60 mm |
| Tray pitch | 67 mm |
| Ice-cream trays capacity | 15 pcs (5 l, 360×160×120h mm) |
| Standard lock | no |
| Standard light | no |
| Chilling/freezing yield | +90/+3°C — 30 kg / +90/-18°C — 20 kg |
| Condensing unit | plug-in unit |
| Refrigerant (gas) | R290 |
| Ventilation control | no |
| Humidity control | no |
| Max. absorbed power | 1600 W |
| Cooling power | 1586 W |
| Input voltage | 1×230V, 50Hz |
| Climate class | 5 |
| Packaging dimensions (W×D×H) | 87 × 91 × 220 cm |
| Gross volume (packaging), m³ | 1.5 |
| Net weight | 148 kg |
| Gross weight | 166 kg |
Compared with the BCB10, the GEMM BCB10E offers the same capacity of 10 GN 1/1 trays but runs on a single-phase 230V supply, simplifying installation where a three-phase line is unavailable. Chilling and freezing yield are somewhat lower, at 30 kg and 20 kg per cycle respectively.
The unit is used in kitchens of educational and healthcare institutions for rapid chilling and freezing of pre-cooked dishes before short-term storage. The BASIC configuration, without additional ventilation or humidity control, simplifies day-to-day operation.
