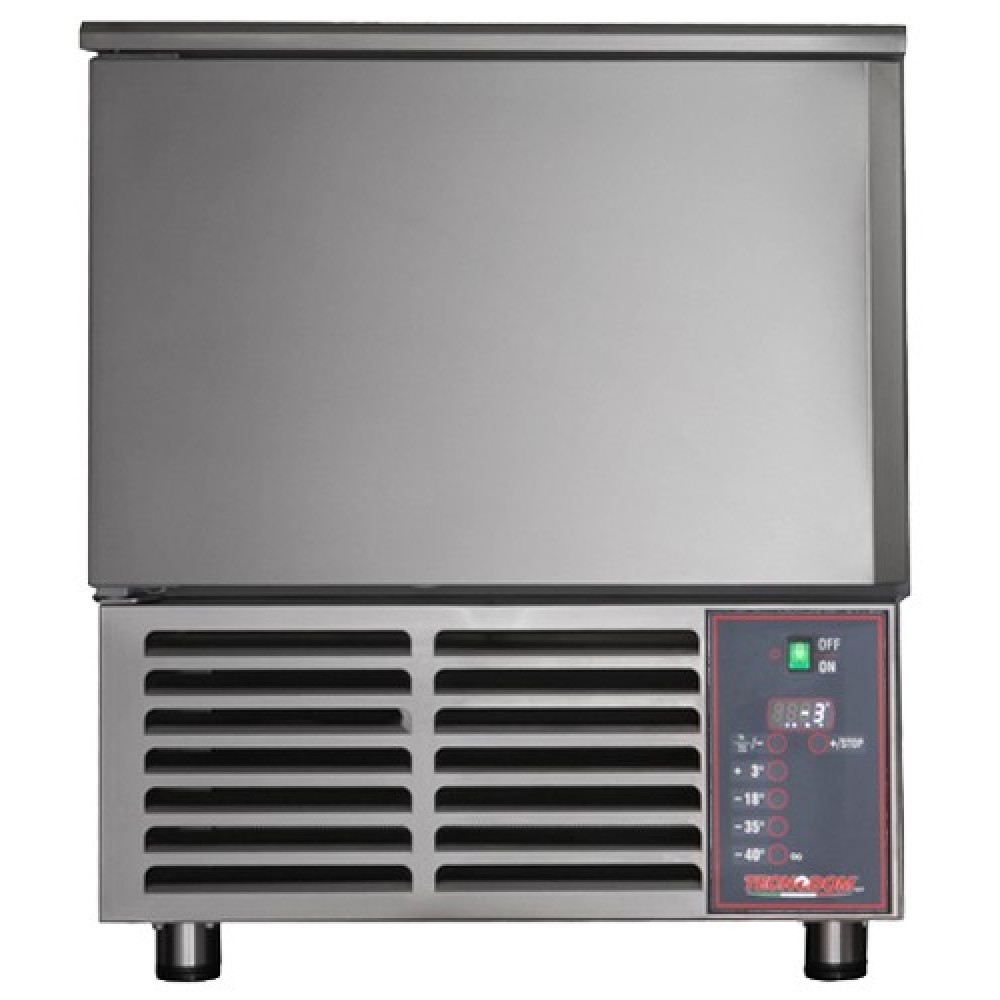

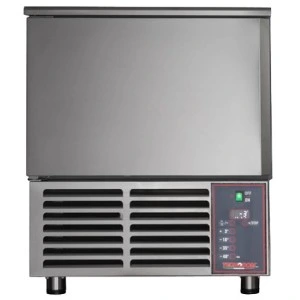

The Tecnodom P-ATT05EA Aladino blast chiller is designed for rapid cooling and freezing of cooked dishes and semi-finished products right after heat treatment, reducing the risk of bacterial growth and extending safe storage time in school, kindergarten and hospital kitchens and other facilities running their own catering.
The unit holds 5 GN1/1 pans or 600x400 mm trays. In chilling mode it brings food from +65°C to +10°C in 81 minutes with a 20 kg load; in freezing mode it goes from +65°C to -18°C in 179 minutes with a 12 kg load, and the chamber can reach a minimum of -40°C. It runs on R290 refrigerant with forced-air (ventilated) cooling, and defrosts with the door open, without heaters or hot gas.
Features
- Designed, engineered and assembled in Italy.
- Stainless-steel interior and exterior, with a galvanised-steel external base.
- Rounded interior corners for easier cleaning.
- High-pressure injected, CFC-free polyurethane insulation.
- Self-closing door with left-hand hinges and a magnetic gasket.
- Front panel with an electronic control board.
- Condensing unit with an openable front grille for easy maintenance.
- Runs on R290 refrigerant.
- Evaporator with anti-corrosion cataphoresis coating.
- Defrosts with the door open, without heaters or hot gas.
- Removable bottom tray for collecting condensate.
- Cycles can be set by a core probe: +3°C, -18°C, -35°C, -40°C.
- Kit of 4 adjustable stainless-steel feet (60-80 mm).
- Fits both GN1/1 grids and 600x400 mm trays.
- Easy installation, ready to use straight after connection.
- Chamber temperature probe.
- Core (food) temperature probe.
- 5 pairs of universal stainless-steel runners for GN1/1, 600x400 mm.
- Standard packaging: pallet plus cardboard.
Specifications
| Brand | Tecnodom (Italy) |
| Manufacturer code | P-ATT05EA |
| Product type | Blast chiller cabinet |
| Energy consumption, chilling, kWh/kg | 0.0564 |
| Max chilling load, kg | 20 |
| Chilling time at max load (+65°C to +10°C), min | 81 |
| Energy consumption, freezing, kWh/kg | 0.2163 |
| Max freezing load, kg | 12 |
| Freezing time at max load (+65°C to -18°C), min | 179 |
| Minimum chamber temperature (at 30°C, 60% RH), °C | -40 |
| Refrigerant | R290 |
| GWP | 3 |
| Climate class | 4 |
| Cooling type | Forced-air (ventilated) |
| Defrosting | Door-open defrost |
| Insulation thickness, mm | 60 |
| Voltage, V | 230, 1N |
| Frequency, Hz | 50 |
| Power input, W | 1292 |
| Supply current, A | 6.5 |
| Material | Stainless steel 18/10 |
| Number of trays | 5 |
| Tray size | GN1/1 or 600x400 mm |
| Feet height, mm | 60 to 80 |
| Dimensions with packaging (LxWxH), mm | 770x770x1050 |
| Dimensions without packaging (LxWxH), mm | 750x750x890/910 |
| Gross weight, kg | 98 |
| Net weight, kg | 92 |
| Noise level, dB | <56 |
The unit is suitable for kitchens of educational and healthcare facilities where controlling cooling and freezing temperatures is part of food-safety procedures. A full set of technical documentation can be provided for tender purchases.
